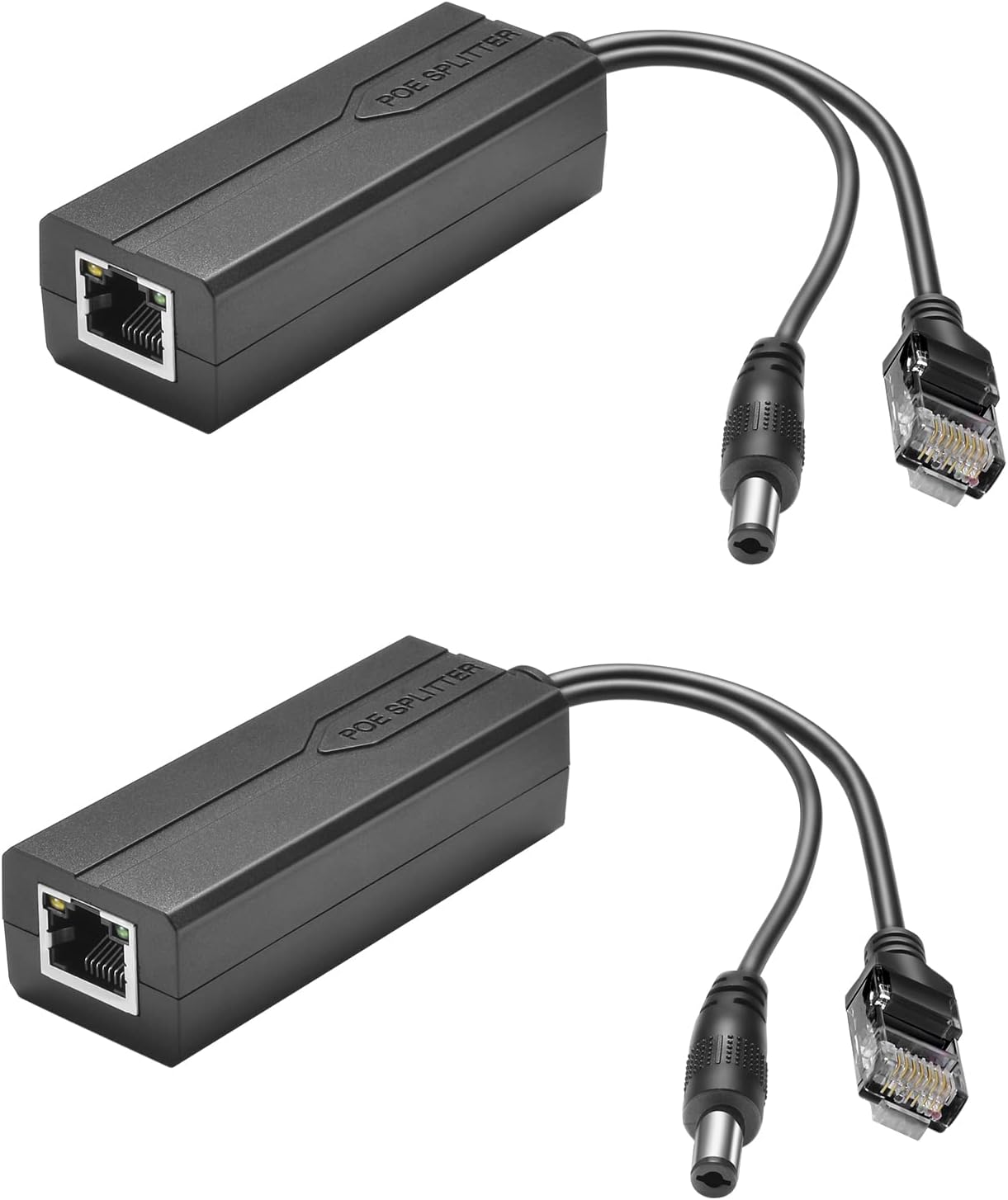

Active PoE Power Over Ethernet Splitter Adapter 48V to 12V, 5.5x2.1mm DC, IEEE 802.3AF/at Compliant 10/100Mbps PoE Splitter with 12V Output for Surveillance Camera CCTV & VoIP Phone, 2 Pack

• ＋ Active PoE technology
• ＋ Compact design for easy installation
• ＋ IEEE 802.3AF/at compliant
• ＋ Supports 10/100Mbps data transfer
• ＋ 12V output suitable for CCTV and VoIP phones

The POE splitter can separate the power and data via cable transmission. Proper matching use with POE switch or PSE injector which meet standard IEEE802.3af, provides 12V power and 10/100M data at the same time for the terminal device does not support PoE so that non-PoE devices can be powered over Ethernet.

Specification:

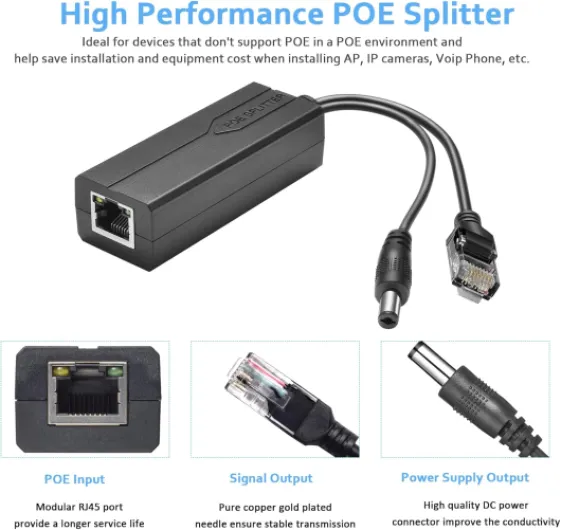

• POE Port: 1 female RJ45 (input)
• Cable Connectors(2): RJ45 male (output) and 5.5x2.1mm male DC jack (output)
• Data rate: 10/100Mbps
• Maximum Power: 15.4W (IEEE 802.3af), 25.5W (IEEE 802.3at)

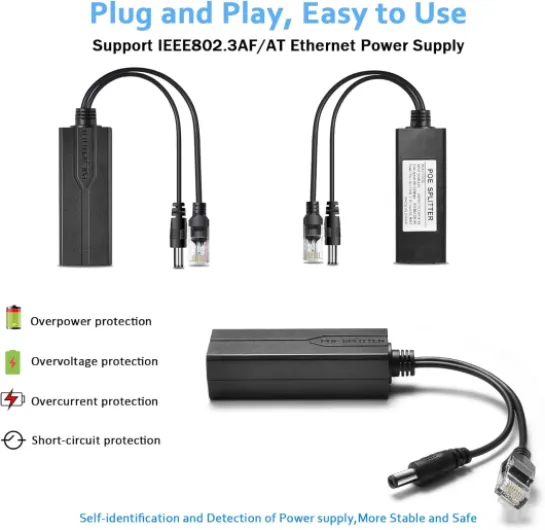

• Voltage input: 44-57V, overvoltage protection
• Voltage output: 12Volts
• Current output: 1-2A
• Maximum transmission distance: 100-Meter
• Wire length: 105mm
• Operating temperature: 0 Degree ~ 50 Degree
• Plug and play, no configuration required.

Applications:

• Use with IEEE 802.3af standard power supply equipment (POE switch) and Non-POE device.
• Unable to use with Non-POE switch or POE device.
• It eliminates the need for a power supply or for a camera to be located near a power outlet.

Fast Q&A to help customer better know our PoE splitter

• Question: How to determine Poe splitter is working?
  Answer: If Poe splitter is functioning, green indicator will always on, means network cable is connected to the PoE splitter. Yellow indicator will flash, means data is transmitting.
• Question: Why the voltage of the PoE splitter is unstable when I test it?
  Answer: If Poe splitter is not connect to terminal device, means there is no load. It will trigger light load protection, and voltage will be unstable. The voltage will stable if gives 10mA, which is 0.01A load.
• Question: How do I know if it can work with my Device?
  Answer: It can separate the power and data via cable transmission and proper matching use with PoE switch or PSE injector which meet standard IEEE802.3af/at, Provides power and data at the same time for the terminal device does not support PoE.

• Adaptive 10/100Mbps network data transmission: This poe splitter compatible with IEEE802.3-AF/AT transport protocol uses six types of all-copper cables for real-time data transmission without jamming
• Input Power Voltage: Power Over Ethernet Splitter Adapter for Security Camera CCTV Surveillance DC44-57V from poe switch or poe injector, deliver power up to about 100m (328 feet).The maximum power consumption is 15.4W, and the POE input voltage range is 48V-57V. 5.5x2.1mm DC Plug Cable. DC Jack(Male) output DC voltage is 12V and the maximum output DC current is 1.2A
• Plug-and-Play - Require no configuration: A simple solution to expand your network to where you wish to place network devices but has no power outlet, powerline ethernet adapter
• Easy to install and operate: Any device which connects to a network via an ethernet cable,needs only one cable connection to power and operate if you use PoE.POE makes installation simpler and less expensive, helps to scaling up networks and adding new connections and devices. POE splitter can make non-POE device works via POE.Say goodbye to the wiring annoyance of multiple lines by simply connecting one network cable to transmit data and power at the same time
• Typical application areas include malls, hospitals, companies, parking lots, urban streets, residential buildings, etc. M2C mode sales, the powerful production capacity of background factories, while ensuring capacity and quality, directly give the buyer (consumers), so that the buyer can buy high performance-price ratio products, so that the buyer can buy with confidence
